- 030底部法兰转角缸
- 【Brief】：

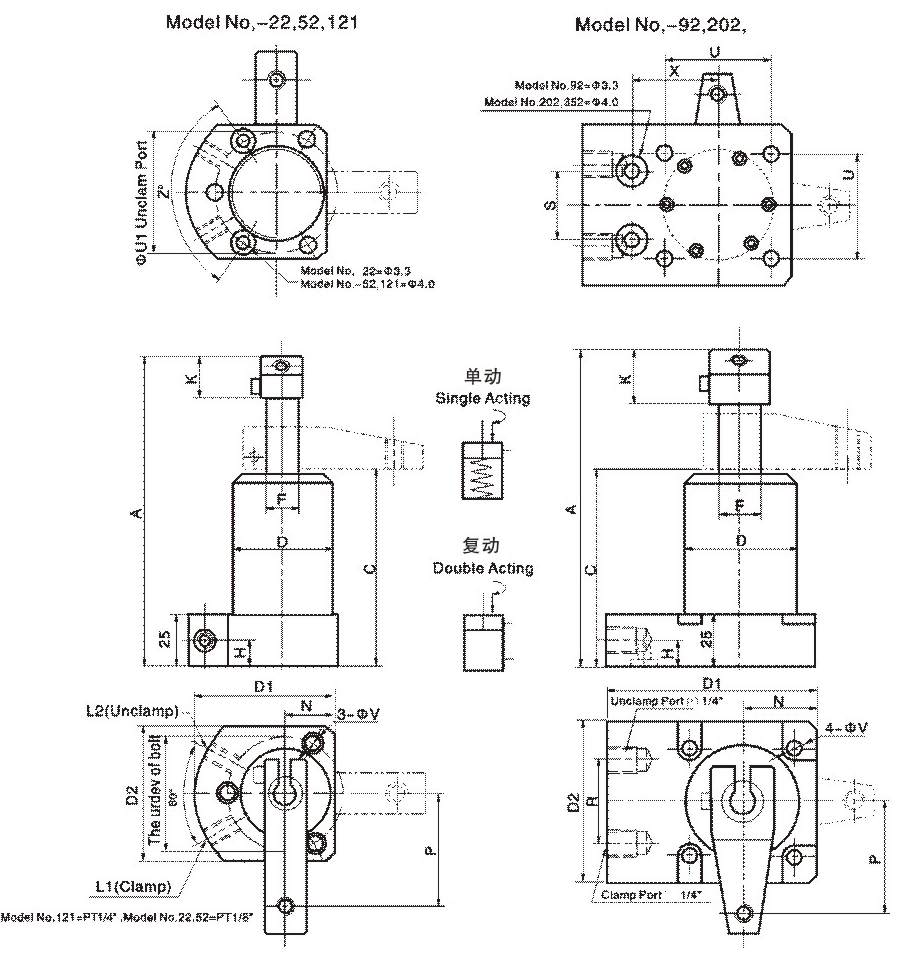

- There is no need to reserve holes; the turning angle is fixed to the working table directly with bolts. The main structure of the cylinder block is on the working surface, which can tighten the thicker workpiece and allow the clamping of the oversize workpiece.
- Reciprocating features: clamping and unloading are all controlled by oil circuit. The clamping and unloading of the corner cylinder are controlled alternately according to the direction of the reversing valve. The shape of the press arm is the same as that of the single action.
- Single-acting features: internal systematization is relatively simple, there is no loading and unloading system, loading and unloading relies on resilience to complete the formation of loose unloading; external pipelines with fewer doors and accessories make the supporting system relatively simple. Innovative arm design can meet a variety of occasions.
- Carbon steel is used for cylinder block material. After carburizing and nitriding treatment, the surface hardness is high, and the inner surface of cylinder block has high hardness and wear resistance.
-
When the length of the pressing plate needs to be increased, please do not exceed 1.5 times of the original length.
- 【Series】：油压系列
