- FT-16块型油缸
- 【Brief】：

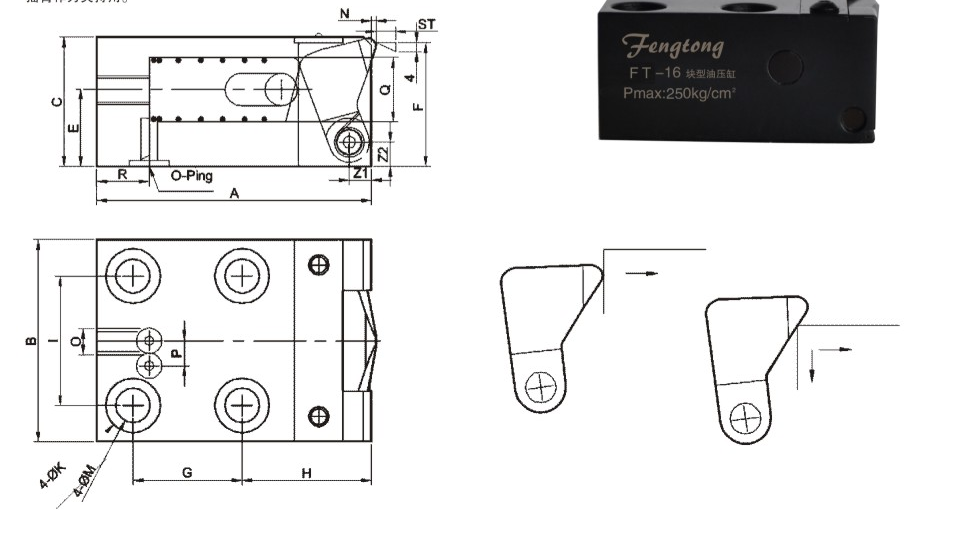

- This type of block cylinder is low pendulum fixed cylinder, single-acting, spring reset, maximum operating pressure 25 MPA.
- This type of cylinder is driven by a swinging motion fixed at the center of the lower position, thus providing (two-dimensional) forward horizontal thrust and downward vertical thrust.
-
The workpiece can be positioned forward and fixed downward on the base, and the strength depends on the angle of the contact point. It can also rotate various swing arms for clamping.
- 【Series】：油压系列
