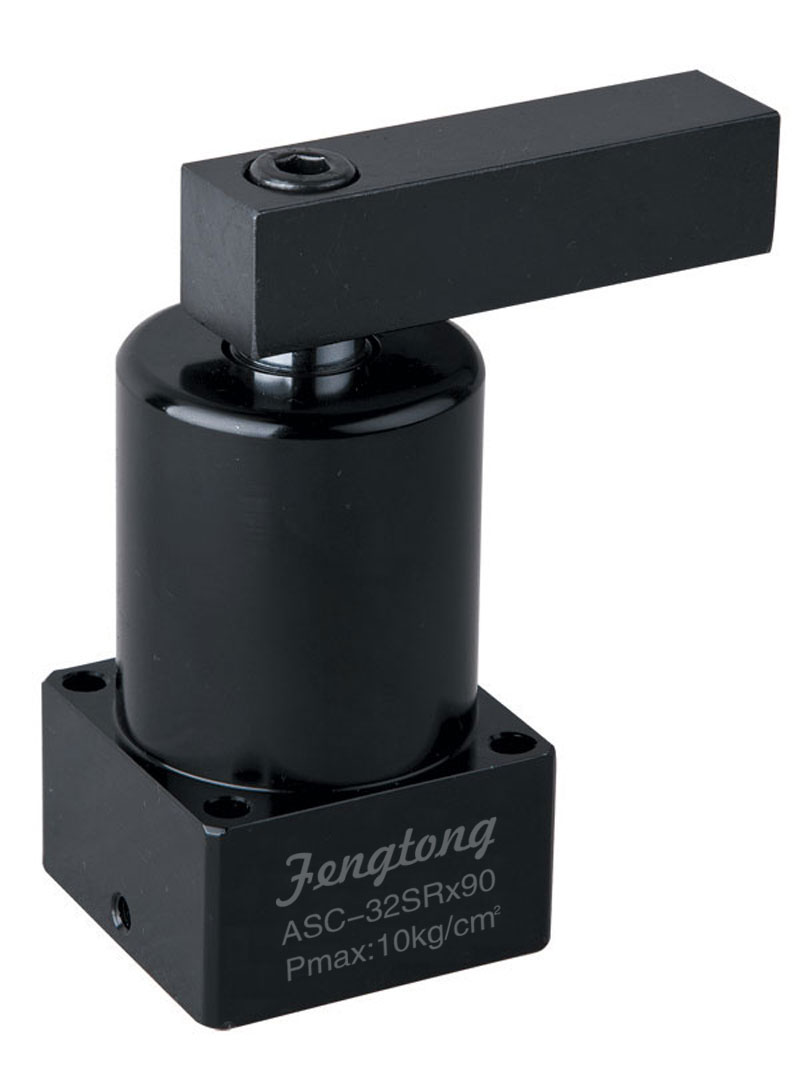

- NHU上法兰油路板型油压转角缸
- 【Brief】：
- This product has four kinds of cylinder diameters ranging from - 32 - - 63, which are double-acting. The standard angle of the rotary cylinder is 90 degrees, and the optional angles are 0 degrees, 45 degrees and 60 degrees.
- The total stroke of the cylinder is equal to the sum of its angular stroke and compaction stroke.
- There are two methods of compression, one arm and two arms.
- The material of cylinder block is medium carbon steel.
-
When the length of the pressing plate needs to be increased, please do not exceed 1.5 times the original length.
- 【Series】：空压转角缸
